technical features:

• Adoption of the most advanced Teflon diaphragm with large ring section make the electrode with stable liquid junction.
• Unique structure prevent the electrode from easy pollution and blockage; long life
• The reference system is filled with the high polymer; convenient use; it is unnecessary to fill electrolyte.
• The electrode is suitable for various medium with severe pollution and it can prevent the disturbance from S2-, and CN-.
• The measurement range： +/-2000mV , the temperature range: –10~110℃ and pressure resistance:0.6MP
• The external dimension of the electrode is φ12x120mm

MODEL : O4T00-P07L2-135

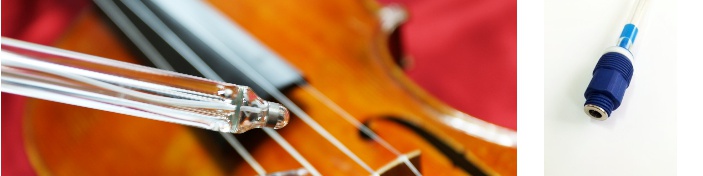

Shown as the figure;

It can be directly used together with various redox meters as a complete set.

The electrode has the Plug-in cable and the length of the cable can be adjusted according to the requirements of the users.

It can be installed with the thread PG13.5.

The outer tube material : glass.

The electrode has the fixed cable and the length of the cable can be adjusted according to the requirements of the user
