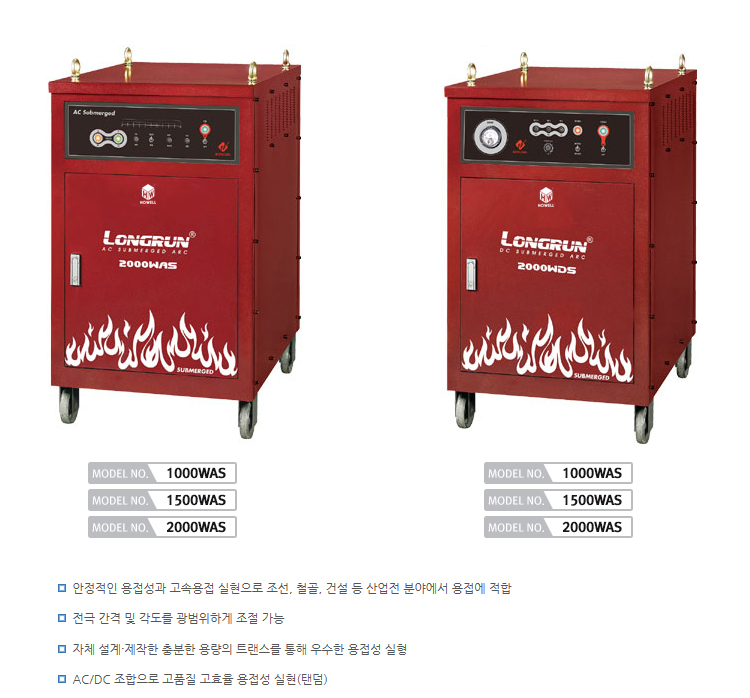

| 모델(MODEL) |
AC |
DC |
| 1000WAS |
1500WAS |
2000WAS |
1000WDS |
1500WDS |
2000WDS |
| 입력전압(Input Volt) |
220/380/440V 1Phase |
220/380/440V 3Phase |
| 입력용량(Input Capacity) |
90KVA |
135KVA |
180KVA |
80KVA |
120KVA |
160KVA |
| 무부하전압(No load Volt) |
95V |
82V |
| 출력전류(Output Current) |
150~1000A |
150~1500A |
150~2000A |
100~1000A |
150~1500A |
200~2000A |
| 주파수(Frequency) |
50/60Hz |
| 사용율(Duty Cycle) |
80% @ Rated Output |
| 외형치수(Dimension)(WxDxH) |
750X1100X1150mm |
800X1050X1400mm |
800X1050X1400mm |
750X1100X1150mm |
800X1050X1400mm |
800X1050X1400mm |
| 중량(Weight) |
415kg |
700kg |
720kg |
415kg |
700kg |
720kg |
