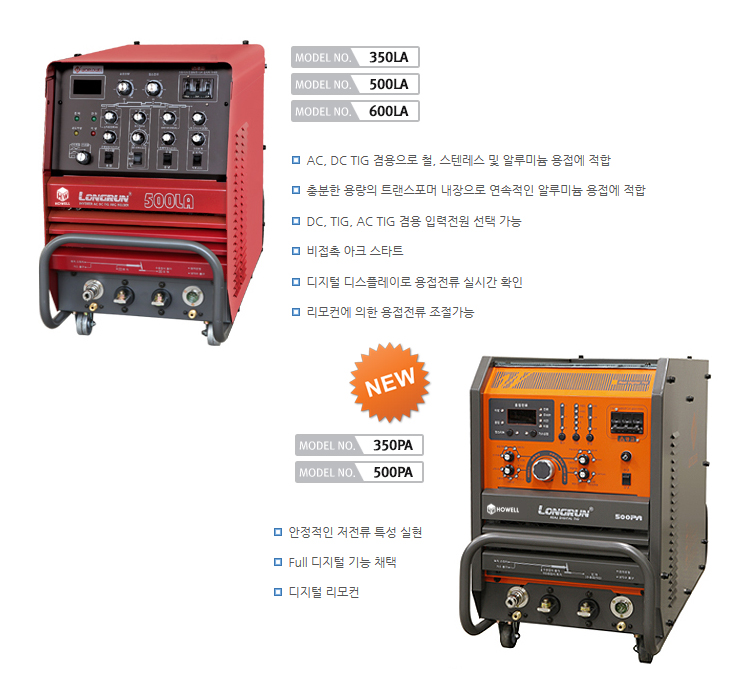

모델(MODEL)	350LA		300L2		300LT
입력전압(Input Volt)	220V/380V/ Switchable
용접방법(Process)	TIG	STICK	TIG	STICK	TIG	STICK
입력용량(Input Capacity)	10KVA		17KVA		20KVA
무부하전압(No load Volt)	58V @380V Input
출력전류(Output Current)	10~350A	20~200A	15~500A	20~340A	15~600A	20~400A
출력전압(Output Volt)	24V	24V	28V	33V	34V	36V
사용율(Duty Cycle)	60% @ Rated Output
외형치수(Dimension)(WxDxH)	365X705X575mm		365X705X575mm		400X790X630mm
중량(Weight)	54kg		64kg		69kg
크레이터전류(Crater Current)	10~350A		15~500A		15~600A
펄스전류(Pulse Current)	10~350A		15~500A		15~600A
펄스주파수(Pulse Frequency)	10~500Hz
펄스폭(Pulse Width)	15~85%
후기가스시간(Gas Afterflow time)	0.5~15초(sec)
전류상승시간(Up slope time)	0.1~5초(sec)
전류하강시간(Down slope time)	0.1~5초(sec)

모델(MODEL)	350PA				500PA
입력전압(Input Volt)	220V		380V		220V		380V
용접방법(Process)	TIG	STICK	TIG	STICK	TIG	STICK	TIG	STICK
입력용량(Input Capacity)	14KVA	13KVA	14KVA	12KVA	23KVA	20KVA	26KVA	20KVA
무부하전압(No load Volt)	74V @220V Input		74V @380V Input		74V @220V Input		78V @380V Input
출력전류(Output Current)	5~350A	5~230A	5~350A	5~230A	5~500A	5~330A	5~500A	5~330A
출력전압(Output Volt)	24V	29V	24V	29V	30V	33V	30V	33V
사용율(Duty Cycle)	60% @ Rated Output				60% @ Rated Output
외형치수(Dimension)(WxDxH)	350X715X560mm				350X715X560mm
중량(Weight)	56.5kg				60kg
크레이터전류(Crater Current)	10~350A				5~500A
펄스전류(Pulse Current)	10~350A				5~500A
펄스주파수(Pulse Frequency)	저:0.5~30Hz / 고:30~500Hz				저:0.5~30Hz / 고:30~500Hz
펄스폭(Pulse Width)	5~95%				5~95%
스타트전류(Start Current)	5~350A				5~500A
후기가스시간(Gas Afterflow time)	0.5~15초(sec)
전류상승시간(Up slope time)	0.1~5초(sec)
전류하강시간(Down slope time)	0.1~5초(sec)
