• LED Curb & Pavement

    This discriminative LED Curb, Pavement and Bollard are the Products which LED Lamp emits in it to awaken surroundings for drivers and pedestrians to ensure their safety on the road.

    Features

    Material

    High Quality LLDPE and HDPE

    Power

    Low Power Consumption using LED Lamp (Approximately 2.16W / 1Hour per 1 Block)

    Durability

    - No damage under direct impact at 70km/h
    - No deformation even if 2Ton Weight Truck with 64km/h Speed crash
    - No problem nevertheless 700Kg is pressed on it in 6 Hours with 70°C outside

    Existing Status

    Low Visibility

    Not sufficient Visibility of Drivers on the road in dark area due to typical CurbStone made by Concrete or Natural Stone

    Fog on the road

    High Possibility of Car Accident caused by not enough front range of sight on the Foggy Expressway

    Pedestrian Safety

    Bring about Low Safety of Pedestrian on the walkway because of short Lighting Facilities

    Main Expected Effect

    1 Improve Visibility of Driver and Pedestrian on the road and save Energy with LED Lamp
    2 Contribute Reduction of Traffic Accident on the Foggy Expressway
    3 Enhance Safety of Pedestrian and City Beautification

    Working Flow

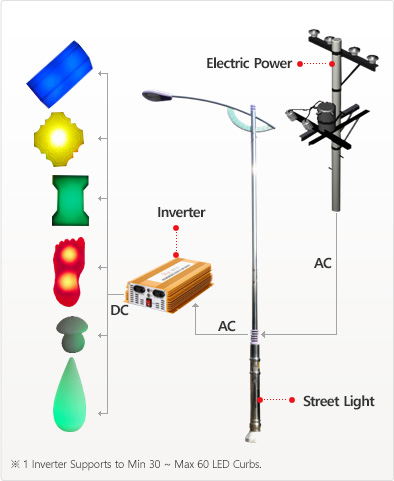

    When Electric Power use

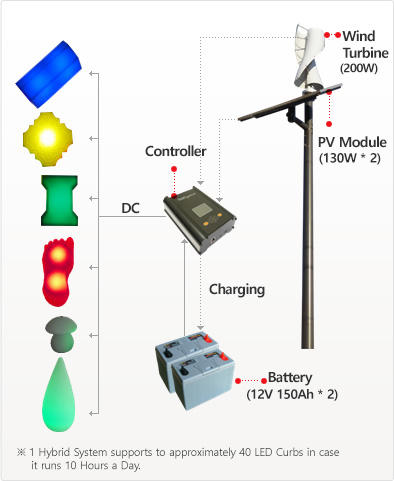

    When Wind & Solar Power Use

    Model

    1. LED Curb

    1) Applied LLDPE and HDPE for high Durability and Long Life Span
    2) Available for AC or DC as a Power Source
    3) Support various Dimension and Color

    Color Dimension Thickness Weight Working Temperature Waterproof

    White,
    Yellow, Green,
    Blue,

    Red, Purple    		 200*150*200m/m

    6~7m/m

    		 0.8Kg

    - 80 ~ + 120°C

    IP68
    200 * 150 * 250m/m 1.1Kg
    200 * 150 * 300m/m 1.3Kg
    500 * 150 * 200m/m 1.7Kg
    500 * 150 * 250m/m 2.2Kg
    500 * 150 * 300m/m 2.7Kg

    2. LED Pavement

    1) Applied LLDPE and HDPE for high Durability and Long Life Span
    2) Available for AC or DC as a Power Source
    3) Support various Dimension and Color

    Color Dimension Thickness Weight Working Temperature Waterproof

    White,
    Yellow, Green,
    Blue,

    Red, Purple    		 8 Angle 220 * 220 * 70m/m
    300 * 300 * 70m/m    		 6~7m/m - 75 ~ + 110°C

    IP68
    I 186 * 156 * 80m/m
    Foot 400 * 200 * 80m/m;
    Stripe 1,520 * 120 * 70m/m
    Mushroom 230 * 200m/m
    Bullet 340 * 190m/m

    Application

    ※ This is an Image to help Customer’s understanding.

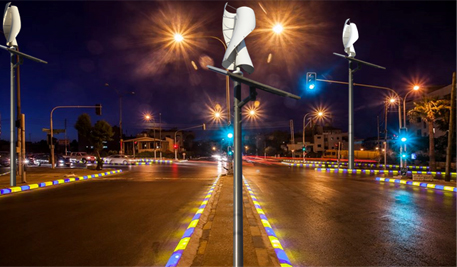

    LED Curb / Road

    LED Curb / Park

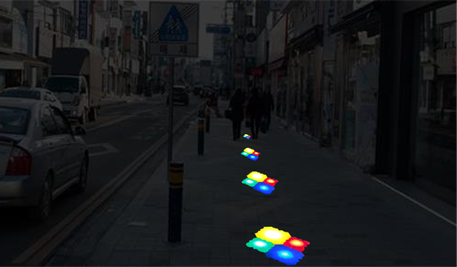

    LED Pavement/ Walkway

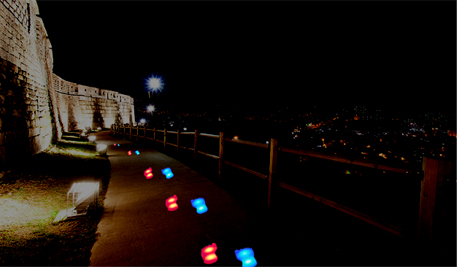

    LED Pavement/ Park
