• Hybrid Street Light

    We present the Hybrid Light System which equipped with Spiral Wind Turbine with much better generating efficiency against Propeller Wind Turbine, high efficiency PV Module and it runs perfectly with Intelligent Hybrid Controller without any Electric Power.

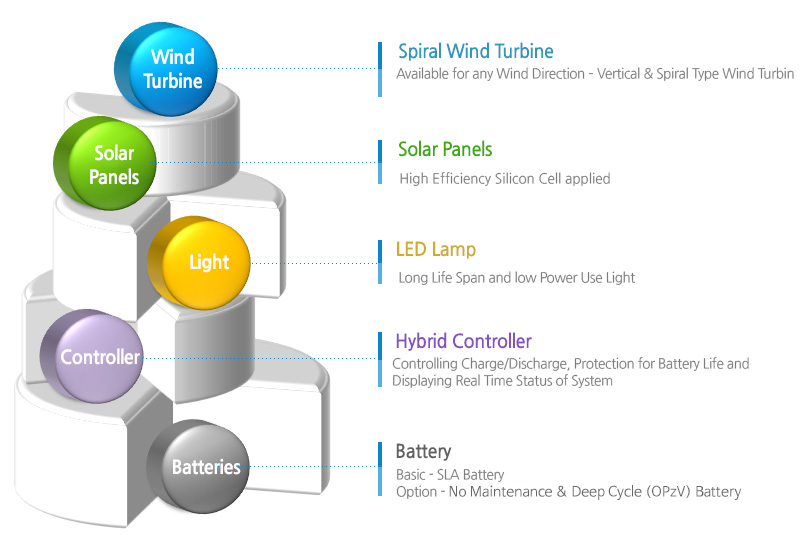

    Major Components

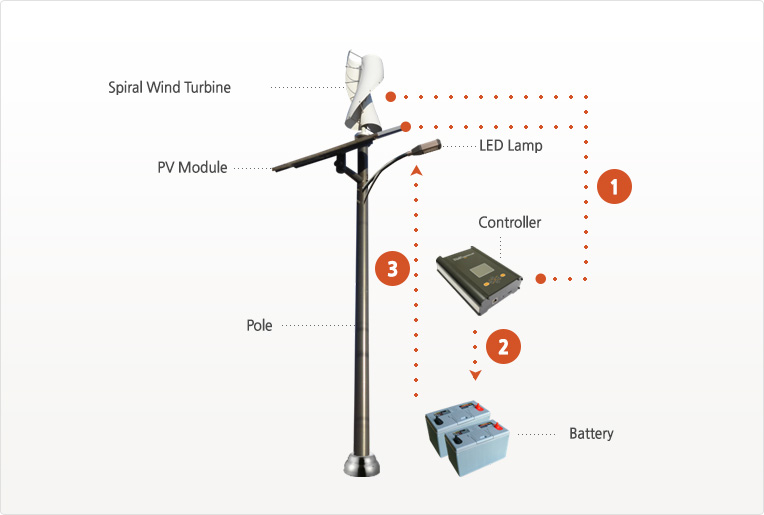

    Working Flow

    1 Generating Power by Spiral Wind Turbine and PV Modules from Wind and Sunlight
    2 Charging generated Power into the Batteries by Hybrid Controller
    3 LED Lamp On & Off automatically by Hybrid Controller based on Daytime and Night or Embedded Timer

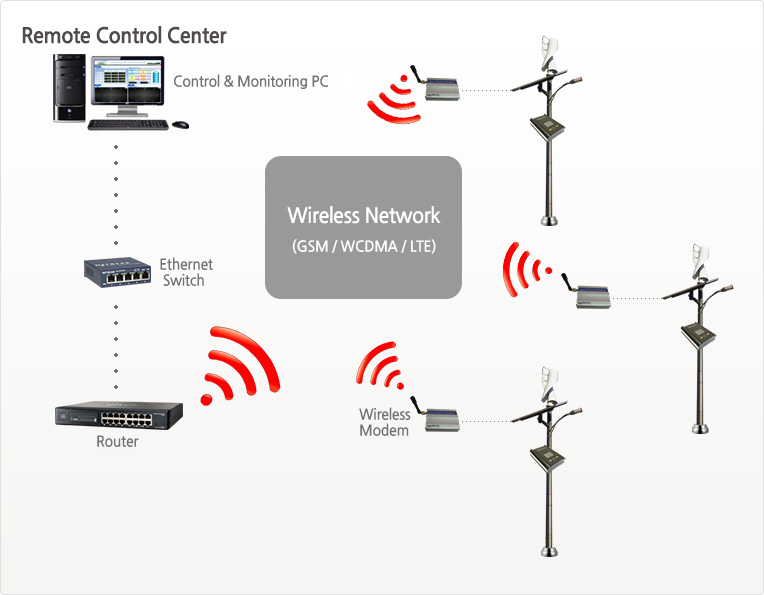

    Remote Control & Monitoring (Option)

    Product Model

    Model GPC-100WS-55L GPC-100WS-70L GPC-200WS-90L GPC-200WS-100L GPC-300WS-120L
    Wind Turbine 100W 100W 200W 200W 300W
    PV Module 100W * 2 130W * 2 80W * 4 80W * 4 100W * 4
    LED lamp 55W 70W 90W 100W 120W
    SLA Battery 12V 100Ah * 2 12V 150Ah * 2 12V 150Ah * 2 12V 100Ah * 4 12V 120Ah * 4
    Pole (Steel) 60m, Ø165, 4.5t 7m, Ø216, 5.8t 8m, Ø216, 5.8t 9m, Ø265, 5.8t 10m, Ø265, 5.8t
    Working Time 10Hours a Day 1일 10시간
    Sunless Days 3 Days 3일
    Recommended Installing Area Park or 2-Lane 6 Lane 8 Lane

    Each Model Specification depends on customer requirement. PV Module and Battery’s Volume could be changed for more Working Time a Day of LED Lamp and more Sunless Days.

    Comparision

    Classification Typical Light Solar Light Horizontal Hybrid Light Vertical Hybrid Light
    Appearance
    Power Source Electricity Sunlight Wind Power + Sunlight Wind Power + Sunlight
    Sudden Change of Wind Direction Not Applicable Not Applicable Not Good Working of Wind Turbine Good Working of Wind Turbine
    Available Charging Time Not Applicable 3.5 Hours a Day All Day Long but not efficient due to Horizontal Wind Turbine All Day Long
    Electric Shock Yes No No No
    Noise Not Applicable Not Applicable Over 70~80dB Approximately Under 15dB
    Environmental Pollution Yes No No No
    Turn On & Off Depends on Electrical Power Supply Automatically based on Sunset and Sunrise Automatically based on Sunset and Sunrise Automatically based on Sunset and Sunrise and Embedded Time
    Working Working well except Blackout Not Enough Working Sometimes Not Working Very Good Working

    Application

    ※ This is an Image to help Customer’s understanding.

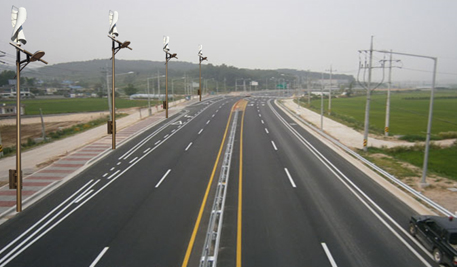

    Street

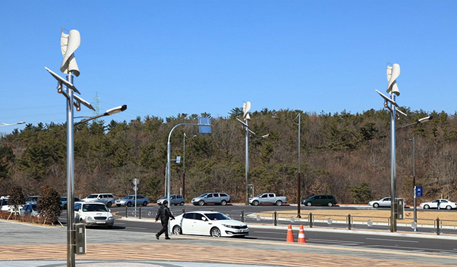

    Parking Lot

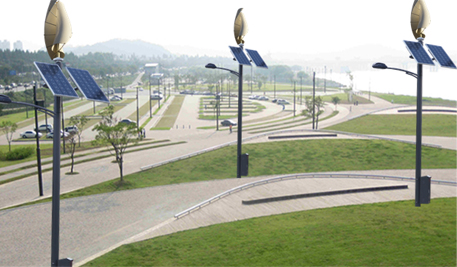

    Park

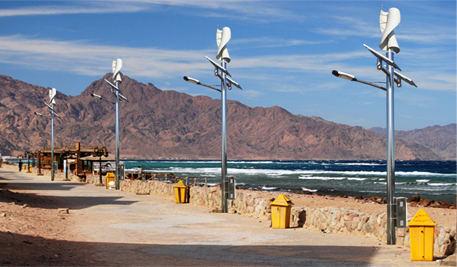

    Seaside
