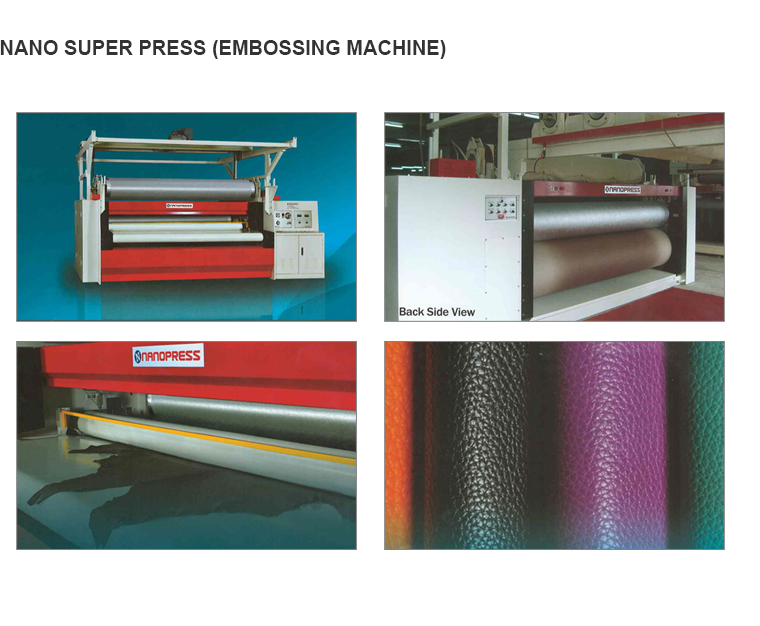

NANO SUPER PRESS

 Technical Data

Working width	1800m/m	2400m/m	3000m/m	3200m/m
Overall dimensions	3810x2200x3400	4410x2200x3400	5010x2200x3400	5210x2200x3400
Working speed	3~15 m/min	3~15 m/min	3~15 m/min	3~15 m/min
Max pressure	270kg/㎠	270kg/㎠	270kg/㎠	270kg/㎠
Max temperature	190℃	190℃	190℃	190℃
Installed power	35kw/h	40kw/h	50kw/h	50kw/h
Air compressor	6kg/㎠	6kg/㎠	6kg/㎠	6kg/㎠
Net weight	7500kg	8500kg	12000kg	12800kg

<ABOUT THE NANO PRESS TECHNOLOGY>

The Embossing Roller made of special materials give an effect of nature haircell and grain on the

leather It can realize more natural touch than artificial one on the embossed leathers.

<ABOUT THE EFFECT ON THE LEATHER>

It can avoid the folding and wrinkle on various kinds of leathers by operating the Feeder and

Spread Belts seperately.

The Nano Technology can realize natural effects on all of leathers from Cow, Lamb, Goat and Pig.

<ABOUT THE DUST-SUCTION>

The simultaneous function of the brushing and suction can eliminate dusts ocurred on rollers

and belts in the course of embossing leathers

<ABOUT THE HEATING BY THERMAL OIL>

It can preserve the same temperature on the cells of the embossing roller's surface.

<ABOUT THE PROSPECT>

It is possible to p rint Natural Haircell, Shrunken, Dry Milled Type, etc,..

Also, we have been doing efforts to develop many kinds of embossing design in cope with

Meeting the request from Tanneries around world.
