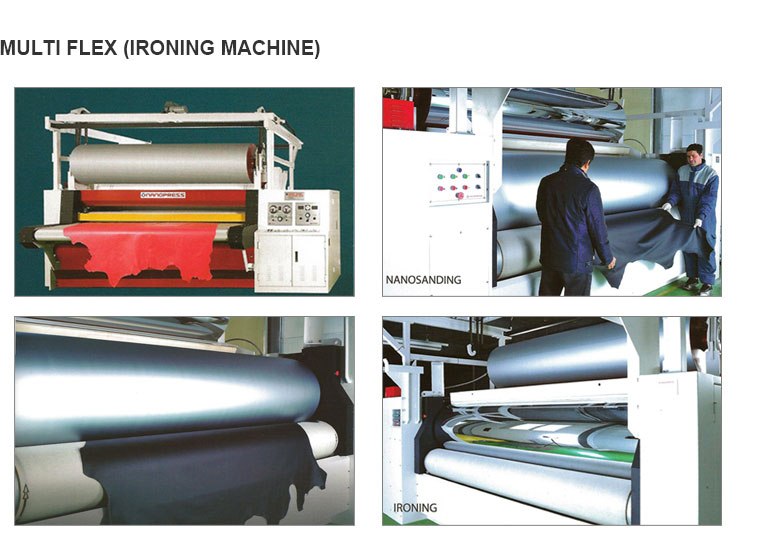

MULTI FLEX

Technical Data

Working width	3000mm	3200mm
Overall dimensions	5030(W) x 2620(L) x 3400(H)	5230(W) x 2620(L) x 3400(H)
Working speed	3~15 m/min	3~15 m/min
Max pressure	100kg/㎠	100kg/㎠
Max temperature	190℃	190℃
Installed power	50kw	50kw
Air compressor	6bar	6bar
Net weight	9800kg	10200kg

<MULTI PURPOSE PROCESSES>
Possibility to work both for ironing and Nano sanding with one machine (PATENTED)

<SMOOTH TOUCH AFTER WORKING>
    Working roller is pressed by 3pressure rollers - 2big rollers pressed by dually hydraulic or pneumatic
    cylinders which are adjustable independently and 1smalll roller pressed by pneumatic cylinders
    This geometric structure allows a longer leather contact against working roller so
    It is possible to get uniform and smooth effect on the leather even at low temperature and low

pressure

<NATURAL SHINE AND SMALL DEFECTS COVERING>
Nano sand roller which is specially manufactured can give natural shinning effect on the leather
without diffused reflection and it can cover for small defects on the leather

<NO LOOSE GRAIN EVEN FOR SOFT KIND OF LEATHERS>
First and third pressure rollers are pressed by dually hydraulic or pneumatic cylinders
Which are activated by hinge system researched and projected. This system allows the rollers

moving freely And sensitively during working.

<KISS PLATING EFFECT FOR EMBOSSED LEATHER>
Second pressure roller controlled by pneumatic cylinders specially designed allows kiss plating effect
on the leather

<SPECIAL SPREADING DEVICES TO PREVENT FOLDING AND WRINKLE>
It can avoid the folding and wrinkle on various kind of leathers by operating the feeder and spreader
for belts separately

<HEATING BY DIATHERMIC OIL>
Working roller can be heated quickly and uniformly over entire surface caused by our specially

designed diathermic oil distribution system.
